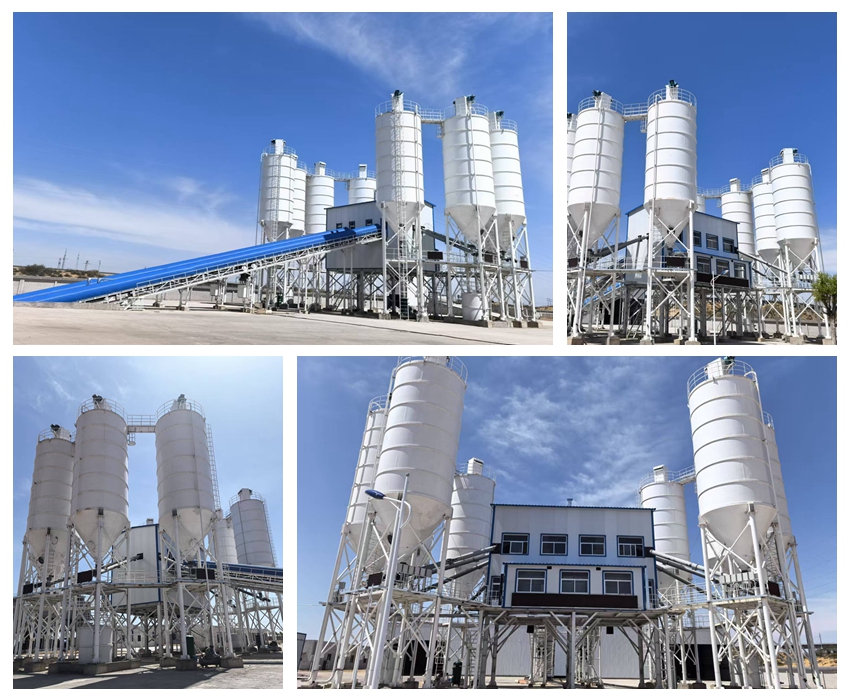

Concrete mixing plant
A Concrete Mixing Plant is an integrated equipment that combines material storage, transportation, metering, and mixing. It precisely blends cement, aggregates, water, and admixtures to produce various concrete mixtures, widely used in construction, road & bridge, and water conservancy projects.
Technical Specifications (Reference value, actual parameters shall be subject to the scheme contract)
• Theoretical Output: 180m³/h
• Mixing Host: twin-shaft compulsory mixer, discharge capacity 3000L, motor power 2×55kW
• Metering Accuracy: Aggregates ±2%, Cement/Fly Ash ±1%, Water/Admixtures ±1%
• Discharge Height: 4.1m
• Total Power: 215kW (excluding powder conveying & dust collection)
Product Features
1. High-Efficiency Mixing
Equipped with twin-shaft compulsory mixing technology, bidirectional material movement ensures uniform mixing. Each batch completes in 60 seconds, suitable for high-performance concrete production.
2. Intelligent Control
Adopts PLC control system with remote monitoring, fault warning, and adaptive compensation algorithm. Automatically adjusts batching parameters to meet precision requirements for high-speed rail projects.
3. Modular Design
Modular structure enables quick disassembly and relocation, reducing site setup time by over 30%
